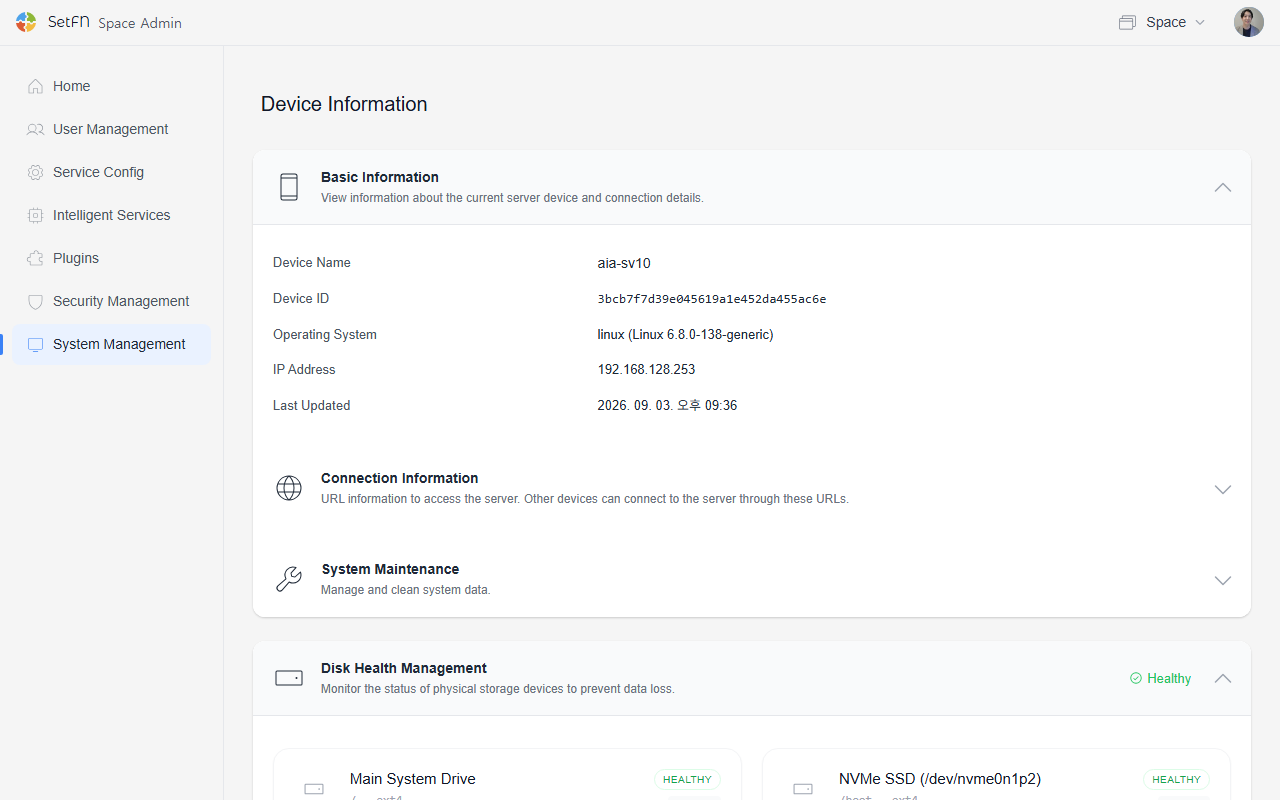

Device Information
The device on which SpaceBuilder is installed functions as the "server." See the basic information, access URLs, and disk status of the device functioning as the server at a glance.
Basic Information
| Item | Description |
|---|---|
| Device Name | Name |
| Device ID | A unique identifying ID generated automatically by the system |
| Operating System | OS information for the server |
| IP Address | The server's private IP address |
| Last Updated | The last time the server information was refreshed |
Connection Information
Check the URLs other devices can use to access this server.
| Item | Description |
|---|---|
| Local URL | The address used when accessing from the server itself |
| Network URLs | The address used when accessing from another device on the same network |
Disk Health Management
Monitor the status of the storage devices connected to the server. You can check the following information for each drive.
| Item | Description |
|---|---|
| Status | Drive health status, such as Healthy, Warning, or Critical |
| Temperature | The drive's current temperature |
| Usage | Used capacity / total capacity and usage rate |
| S.M.A.R.T. | Whether the drive's self-diagnostic feature is active |
